DIN 933, strength class 8.8, hot-dip galvanised
Hexagon head bolt, DIN 933, 8.8U hot-dip galvanised, 17 AF, M10 x 80
Art.-no. 305710 80
EAN 9009258457476
Individual price display after login
Show availability in RECA shop
In order to check the stock in a RECA branch, please log in.
If you have any questions, please call our service hotline at 0800 7322667.
You are not yet a RECA customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 40,000 products
Advice:
Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
Product information
Datasheets(X)
 | |

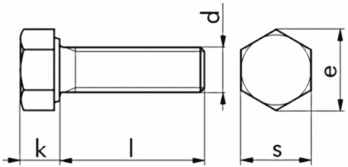

Nominal diameter (d) | 10 mm |
Length (l) | 80 mm |
Head height (k) | 6.4 mm |
Width across corners (e) | 18.9 mm |
Width across flats (s) | 17 mm |
DIN | 933 |
Material | Steel |
Property class | 8.8 |
Surface | Hot dip galvanized |
Thread type | Metric thread |
Thread type x nominal diameter | M10 |
