Construction hinge KO 8
Construction hinge KO8 220/50/14/4, plain
3-piece for steel doors and steel gates
Art.-no. 7203247131
EAN 4029484201228
Individual price display after login
Show availability in RECA shop
In order to check the stock in a RECA branch, please log in.
If you have any questions, please call our service hotline at 0800 7322667.
You are not yet a RECA customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 40,000 products
3-piece for steel doors and steel gates
Door hinges HxW: 220 = 70 × 50 mm
Door hinges HxW: 240 = 70 × 50 mm
Frame strap HxW: 220 = 80 × 50 mm
Frame strap HxW: 240 = 100 × 50 mm
Advice:
Version with loose, galvanised pin, grooved and galvanised studs for driving in to force fit.
Races must be ordered separately.
Product information
Datasheets(X)
 | |

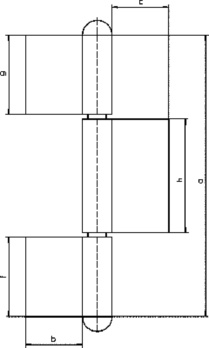

Length of roll (a) | 220 mm |
Tab width (b) | 50 mm |
Tab length (f) | 70 mm |
Stud diameter | 14 mm |
Roll diameter | 22 mm |
Thickness | 4 mm |
Material | Steel |
Surface | Plain |
