Bever PC tubular frame repair lock
Bever tub. repair lock, PC dbl-act mech. 35/92/10, 24 ang. st. steel 1004R1035
92 mm spacing
Art.-no. 7260092351
EAN 4029484937318
Individual price display after login
Show availability in RECA shop
In order to check the stock in a RECA branch, please log in.
If you have any questions, please call our service hotline at 0800 7322667.
You are not yet a RECA customer or do not yet have access data to the Online Shop? Then register now in just a few steps. After a successful check of the entered data, you will have immediate access to the stock inquiry as well as all prices and can immediately order.
Exclusively for trade customers
Register now and access more than 40,000 products
92 mm spacing
- 1 turn (1 locking operation)
- Can be used on DIN left or right due to reversible latch head (can also be turned after installation)
- Profile cylinder with double-action mechanism (i.e. the latch can also be opened by turning the key)
- Bolt projection 11 mm, latch projection 11 mm
- Hole for security door fitting
- Die-cast zinc latch and bolt
- Die-cast zinc nut (10 mm) with steel core
- Lock facing, unperforated
- No striker plate
Application area:
Specially designed for repair and renovation applications, with extra-long lock facing for individual adaptation of length and screw holes. Bolt with sawing protection
Advice:
Total depth of tubular frame lock = pin size + rear pin size 15 mm!
Suitable striker plate: 7260 906 001 (please order separately)
Product information
Datasheets(X)
 | |

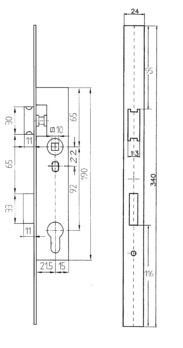

Lock type | Profile cylinder |
Distance | 92 mm |
Backset | 35 mm |
Face plate width | 24 mm |
Face plate length | 340 mm |
Face plate thickness | 2.5 mm |
Face plate shape | Edged |
Square size | 10 mm |
Material of face plate | Stainless steel |
Gloss level of face plate | Matt |
Select RAL-colour code
!! NOTE: On-screen visualisation of the colour differs from real colour shade!!
